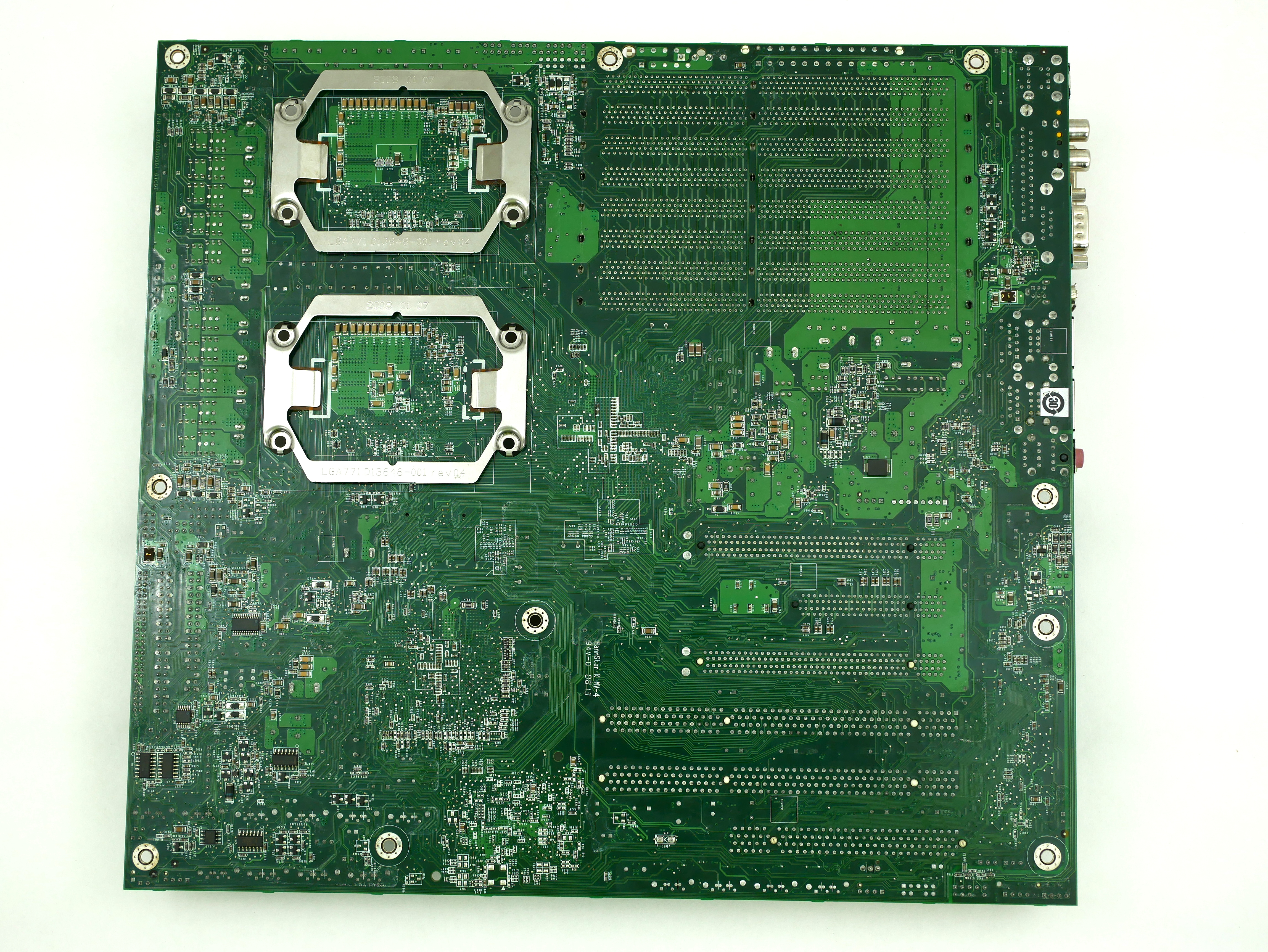

Tyan Server Motherboard Intel CPU 2x LGA771 S5396 R01

Tyan Server Motherboard Intel CPU 2x LGA771 S5396 R01

Condition Refurbished

Compeve SKU 386700100213

Specifications

Processors

2x Socket LGA771

Supports up to two Intel Xeon Woodcrest Processors

( 5000/5100 Series Dual-core);

Clovertown Processors (5300 Series, Quad-core);

Wolfdale-DP Processors (45nm, dualcore);

Harpertown Processors (45nm,quad-core)

1.33 / 1.06GHz FSB

VRD 11.0

Chipset

Intel 5400 MCH + 6321ESB Chipset support for 1.33 / 1.06GHz FSB

Winbond W83627EHG Super I/O Chip

8x Memory slot DDR2

Eight 240-pin DDR2 FB-DIMM sockets

4 memory channels

Supports ECC DIMMs

Maximum of 64/32 GB DDR2-533/667

Integrated Serial ATA II

Six (6) SATA-II ports running at 3.0 Gb/s

RAID 0, 1, 5, 10 support in Windows

Integrated SAS

LSI 1068E SAS Controller

PCI-E x4 interface to 6321ESB

Eight SAS Ports

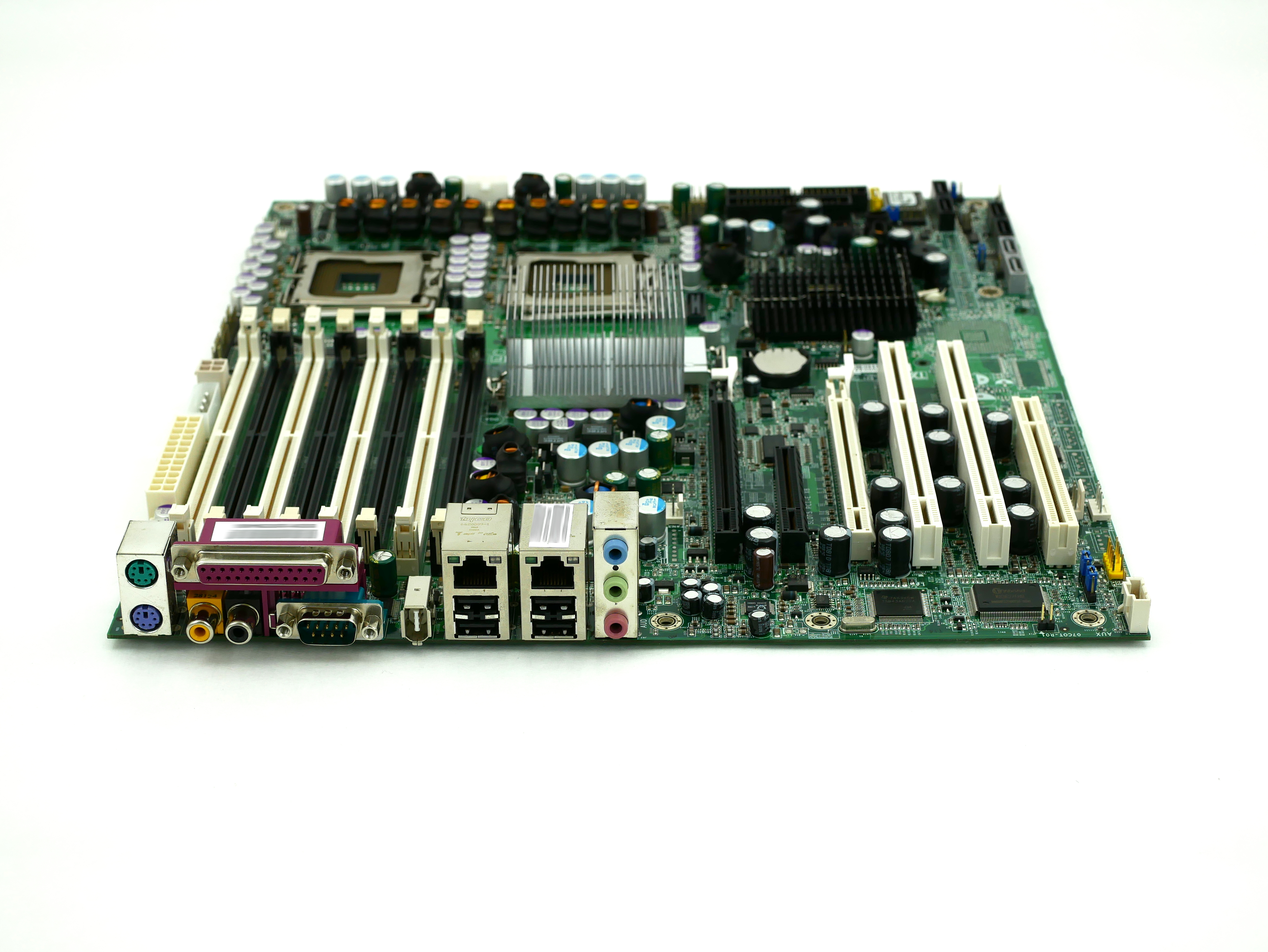

Back Panel I/O Ports

Stacked PS/2 keyboard and mouse connectors

One SPDIF in and one SPDIF out

Stacked Serial (one) and parallel (one) connectors

Two stacked dual USB ports w/ GbE RJ-45 connectors

FireWire (1394a) connector

Stacked Line-in, Line-out, Mic-in audio connectors

Expansion Slots

Two (2) PCI Express x16 slots (X16 Gen2 signal from MCH)

One (1) PCI Express x8 slot (x8 signal from 6321ESB)

Two (2) PCI-X 133/100MHz slots from 6321ESB

One (1) PCI 32-bit 33MHz slot Total six expansion slots

Integrated I/O Interfaces

Two USB 2.0 headers

Six standard/integrated SATA-II connectors

One IDE and one Floppy CON

Eight SAS Ports

One 4-pin CD-in and one 4-pin Aux header

One 9-pin front panel audio header

Integrated LAN controllers

Intel Gigabit from 6321ESB (w/ dual ports “Gilgal” 82563)

Two RJ-45 ports with LEDs

Integrated PCI 1394

TI TSB43AB22 1394a controller

1394a channel for rear (connector)

1394a channel for front (header)
